Briggs & Stratton Lo206 Cylinder Head Box Stock 555635

Name: Briggs & Stratton Lo206 Cylinder Head Box Stock 555635
Brand: My Store
SKU: 555635
Price: 229.99 USD
Availability: InStock

$229.99 ~~$239.00~~

Delivery and Shipping

Orders are processed within 1 business days* (excluding weekends and holidays) after receiving your order confirmation email.

You will receive a notification when your order has shipped which will include tracking.

Our products ship via FedEx Ground or USPS.

*Engine build processing time will vary from above. We will communicate directly with you what to expect on build time. See FAQ for more information.

Check back often, as we add more tools & parts for your karting and quarter midget racing needs!

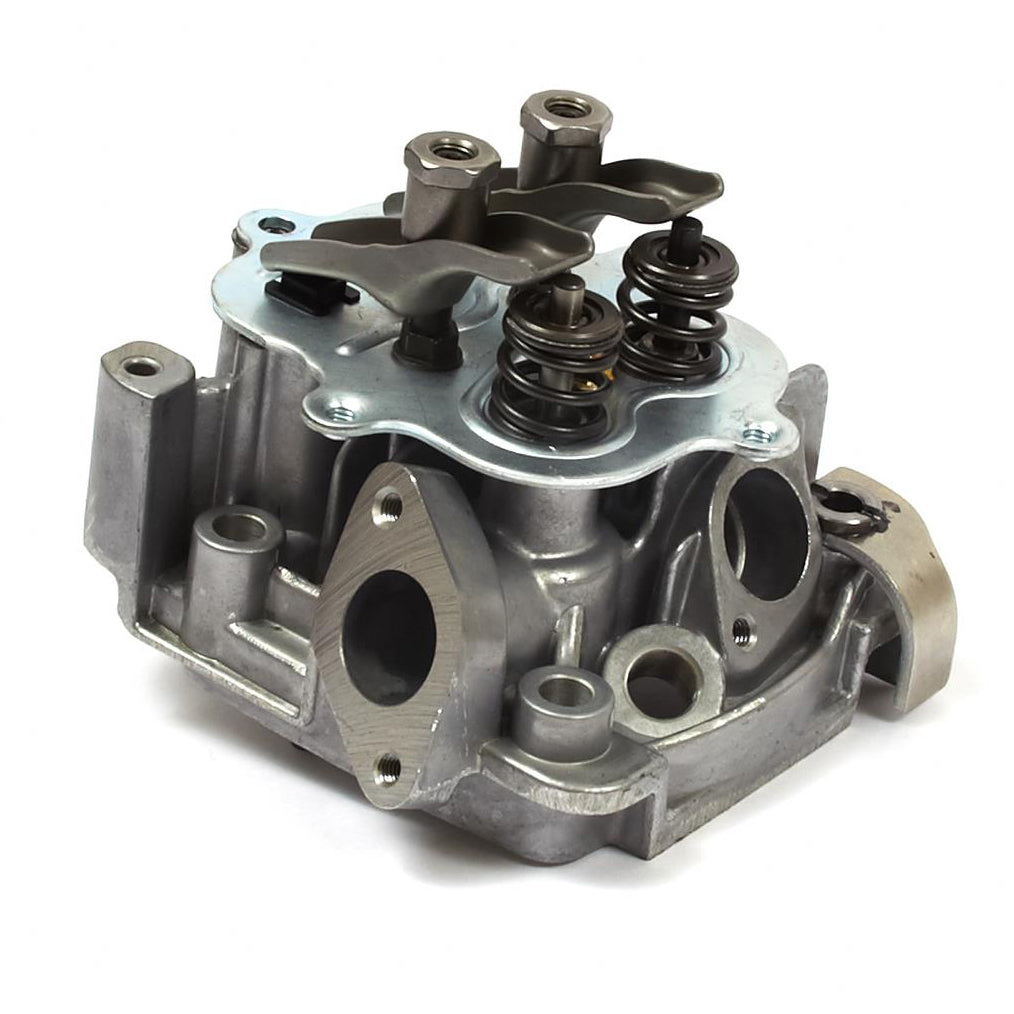

555635 Briggs & Stratton Lo206 Cylinder Head Box Stock

Box stock lo206 cylinder head

We try and they kry - this is another Krybaby Performance Product.

Rules: https://www.briggsracing.com/sites/default/files/2024-01/Briggs%20206%20US%20Rule%20Set%202024_0.pdf

Carb Tuning - https://www.briggsracing.com/sites/default/files/2022-08/carburetortuningguide_ms10429.pdf

206 Seal Database - https://app.briggsracing.com/racer/

Description	Wrench / Socket Size	Torque
Air Guard	7mm	40-50 lb-in. (4.5-5.6 Nm)
Blower Housing	10 mm& 3/8”	60-110 lb-in. (7-12.5 Nm)
Carburetor (to manifold)	10 mm	80-110 lb-in. (9-12.4 Nm)
Connecting Rod	T27	115-120lb-in. (13 Nm)
Cylinder Head Bolts	10 mm	200-220 lb-in. (20-27 Nm)
Exhaust Brace Screws	10 mm	95-125 lb-in. (11-14 Nm)
Exhaust Stud	10 mm	95-125 lb-in. (11-14 Nm)
Flywheel Nut	15/16"	55-75 ft-lbs. (74.5-101 Nm)
Flywheel Fan	10 mm	180-240 lb-in. (20-27 Nm)
Intake (to cylinder)	5 mm Allen	70-90 lb-in. (8-10.2 Nm)
Oil Drain Plug	3/8"	100-125 lb-in. (11-14 Nm)
PVL Ignition Module	7 mm	20-35 lb-in (2.3-4 Nm)
Rocker Arm Stud	7/16	90-120 lb-in. (10-14 Nm)
Rocker Arm Set Screw	1/8" Allen	50-70 lb-in. (5.6-7.9 Nm)
Spark Plug	5/8" deep	95-145 lb-in. (11-16.4 Nm)
Side Cover	"10 mm (patched, grade 8.8) 10 mm (unpatched, grade 8.8) 10 mm (SIMS patched, grade 10.8 )"	"215-230 lb-in. (24-26 Nm) 160-175 lb-in. (18-19 Nm) 260-270 lb-in. (29-30 NM)"
Top Control Cover	10 mm	70-90 lb-in. (8-10 Nm)
Valve Cover	10 mm lower & 3/8”	30-60 lb-in. (3.5-7 Nm)
