SKU: 13111-ZE0-000

Genuine Honda GX120 Only Piston Rod Wrist Pin 1.85" Long 13111-ZE0-000

$8.50 $9.00

Delivery and Shipping

Orders are processed within 1 business days* (excluding weekends and holidays) after receiving your order confirmation email.

You will receive a notification when your order has shipped which will include tracking.

Our products ship via FedEx Ground or USPS.

*Engine build processing time will vary from above. We will communicate directly with you what to expect on build time. See FAQ for more information.

Check back often, as we add more tools & parts for your karting and quarter midget racing needs!

Description

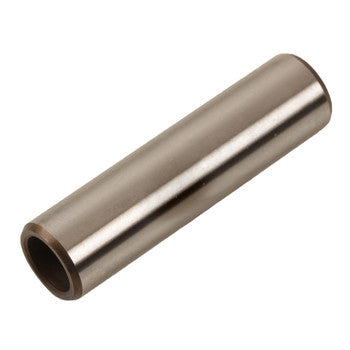

13111-ZE0-000 Genuine Honda GX120 Only Piston Rod Wrist Pin 1.85" Long

Function: The piston pin plays a critical role in delivering seamless power transfer during operation by securing the connection between the piston wrist and the engine's connecting rod.
  • Compatibility: This part is compatible with only the GX120 engine.
  • Dimensions: 46mm Long(1.85”), 12.99mm Dia (.510”), with tapered ends. Holds Piston to rod

USAC 120 Rules

Connecting Rod Rules

  1. Factory Supplied:

    • The connecting rod and its fasteners must be Honda factory-supplied and used without any modifications, except for honing the big end bore.

  2. Specifications:

    • Crankshaft bore size: 1.021” minimum; 1.0265” maximum.
    • Wrist pin end bore: 0.5111” reference.
    • Length: From the bottom of the wrist pin bore to the top of the crankshaft bore must be 2.111” maximum; 2.101” minimum.
    • Weight: Connecting rod with bolts must weigh at least 118 grams.

  3. Prohibited Modifications:

    • Oil grooves on the bearing surfaces of either of the connecting rod bores are not permitted.

    • No other modifications to the connecting rod or fasteners are allowed.

Wrist Pin Rules

  1. Factory Supplied:

    • The wrist pin and retainer must be Honda factory-supplied and used without any modifications.

  2. Specifications:

    • Outside diameter: 0.510” reference.
    • Inside diameter: 0.354” reference.
    • Length: 1.844” minimum; 1.850” maximum.
    • Weight: 25 grams minimum.

These rules ensure that the connecting rod and wrist pin remain within factory specifications and are not altered to gain an unfair advantage.
